Complete
unique: halter
A = antenna, Ab = abdomen, AS = apical spike/spur, Ce = cercus, Cx = coxa, E = eye, Fe = femur, Fl = flagellum, Ha = halter, O = ocellus, Pb = probiscus, Pc = pedicel, T = tarsus, TC = tarsal claw, Ti = tibia, Sa = scales
 |
 |
|
|
| Diptera - Tipulidae (dorsal) |
Diptera - Chironomidae (dorsal) |
|
|
 |
 |
|
|
| Diptera - Culicidae (dorsal) |
Diptera - Culicidae (lateral) |
|
|
| |
|
|
|
 |
|
|
|
| Diptera - Empididae (lateral) |
|
|
|
 |
 |
|
|
| Diptera - Psychodidae (lateral) |
Diptera - Psychodidae (lateral) |
|
|
 |
 |
|
|
| Diptera - Brachycera (dorsal) |
Diptera - Muscidae (dorsal) |
|
|
 |
 |
|
|
| Diptera - rhagionidae (dorsal) |
Diptera - rhagionidae (lateral) |
|
|
 |
 |
|
|
| Diptera - Stratiomyidae (dorsal) |
Diptera - Syrphidae (dorsal) |
|
|
 |
 |
|
|
| Diptera - Tabanidae (dorsal) |
Diptera - Anisopodidae (lateral) |
|
|
 |
 |
|
|
| Diptera - Scathophagidae (lateral) |
Diptera - Nycteribiidae (dorsal) |
|
|
 |
|
|
|
| diptera - brachycera head (frontal) |
|
|
|
Ab = abdomen, AC = anal comb, AL = anal lobe, E = eye, Ep = epaulette, S = spur/spike, Sn = sternite, Te = tergite
 |
 |
|
|
| Diptera- Chironomidae pupa (lateral and dorsal) |
Chironomidae pupa abdomen (dorsal) |
|
|
Leg
Am = arolium, AS = apical spurs, C = claw, Cx = coxa, Em = empodium, Fe = femur, Pu = pulvillus, S = spike/spur, T = tarsus, TC = tarsal claw, Ti = tibia, Tr = trochanter
 |
 |
 |
|

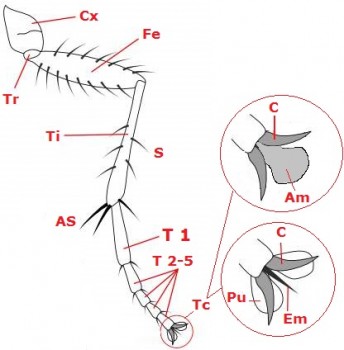

| Diptera leg and tarsus |

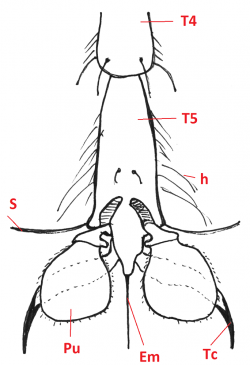

Diptera - Muscidae tars |

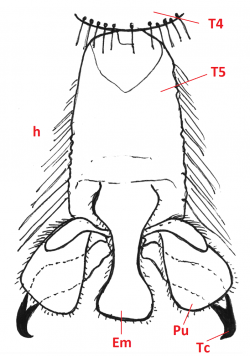

Diptera - Strationomyidae tars |
|
Wing
unique: halters instead of hind wings
al = alula, a-lobe = anal lobe, Ca = calypter, Ha = halter, Ps = pterostigma, Sa = scales
Veins: Af = apical fork, AV (A1 t/m A2) = anal veins, Co = costa, Cu = cubitus, Me (M1 t/m M4) = median, Ra (R1 t/m R5) = radius, s-Co = sub-costa, vs = vena spuris
Cells: bc / Mc = basal cell, cua1 / cup = cell under cubitus, dc = discoidal cell, a1 = cell under anal vein, m1 = cell under median, r1 = cell under radius
Transverse vein between: h = transverse between Co & s-Co, BM-Cu = transverse between bc and dc, DM-CU = transverse between dc and Cu
 |
 |
|
|
|
| Insect wing |
Diptera (front) wing |
|
|
|
 |
 |
|
|
|
| Diptera - Culicidae wing (with scales) |
Diptera - Ceratopogonidae wing |
|
|
|
 |
 |
|
|
|
| Diptera - Anisopodidae wing |
Diptera - Chironomidae wing |
|
|
|
 |
 |
|
|
|
| Diptera - Strationomydae wing |
Diptera - Syrphidae wing |
|
|
|
 |
 |
|
|
|
| Diptera - Tipulidae wing |
Diptera - Muscidae wing |
|
|
|
head
A = antenna, AS/ASc = Antennal sclerite, E = eye, Fl = flagellum, MP = maxillary palp, Na = nasus, O = ocellus, Pb = probiscus, Pc = pedicel, Ro = rostrum, Sc = scape,
 |
 |
|
|
|
| Diptera - Tipulidae head (lateral) |
Tipulidae head (dorsal) |
|
|
|
 |
 |
|
|
|
| Diptera - Brachycera head (lateral) |
Diptera - Muscidae head female (frontal) |
|
|
|
 |
 |
|
|
|
| Diptera - Empididae head (lateral) |
Diptera - Scathophagidae head (lateral) |
|
|
|
